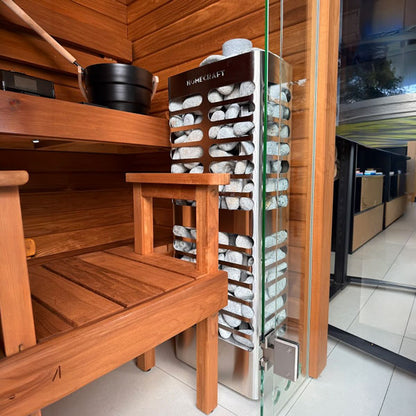

Revive Slim Sauna Heater

Big Sauna Performance. Slim, Space-Saving Design.

When sauna space is limited, you shouldn't have to compromise on the experience.

The Homecraft Revive Slim Sauna Heater delivers powerful, consistent sauna heat in a sleek vertical design measuring just 13.5" W × 8" D × 36" H. Designed specifically for smaller sauna environments, Revive Slim gives you the premium look, substantial stone capacity, and steam-focused experience of the Revive collection — in a significantly smaller footprint.

More usable sauna space. Less floor space dedicated to your heater.

🔥 Compact Footprint. Impressive Stone Capacity.

The Revive Slim may be narrow, but it's built to deliver a substantial sauna experience.

Its tower-style design accommodates up to 100 lbs. of sauna rocks, giving you plenty of heated stone surface for creating the traditional sauna atmosphere you love.

Add water to the heated rocks to create bursts of steam and customize the feel of your sauna session.

The result?

Powerful heat + generous stone capacity + a slim footprint.

It's an ideal combination for home saunas where every inch matters.

🏡 Designed for Smaller Sauna Spaces

Traditional sauna heaters can take up valuable floor space. Revive Slim takes a different approach.

Its tall, narrow profile is designed to fit naturally into compact sauna rooms while leaving more room for seating and relaxation.

Whether you're building a new home sauna or upgrading an existing space, the Revive Slim makes it easier to create a premium sauna environment without letting the heater dominate the room.

Perfect for:

• Residential home saunas

• Compact sauna rooms

• Smaller wellness spaces

• Modern sauna installations

• Renovation and sauna upgrade projects

100% Stainless Steel Construction

Homecraft has built its reputation around quality sauna products, and the Revive Slim continues that tradition.

The heater is constructed from 100% stainless steel, giving it a clean, modern appearance that pairs beautifully with traditional and contemporary sauna interiors.

Its durable construction is designed for the demands of regular sauna use while providing the refined appearance expected from a premium sauna heater.

💨 Create the Sauna Atmosphere You Want

Revive Slim is designed for sauna enthusiasts who appreciate the flexibility of working with heated sauna rocks.

Pour water over the hot rocks to create a satisfying burst of steam and add another dimension to your sauna session.

Whether you prefer a drier sauna atmosphere or enjoy a more steam-rich experience, the generous rock capacity gives you greater flexibility to customize your sessions.

Heat it. Add water. Enjoy the ritual.

Thoughtful Tower Design

The Revive series was engineered around a simple idea:

Create a better sauna experience without unnecessary bulk.

The tower-style configuration allows the heater to maintain a relatively compact footprint while providing substantial rock capacity.

A protective airflow chamber is incorporated into the heater's design to support efficient airflow around the heating system, while the heating elements are designed to be protected within the heater structure.

The result is a thoughtfully engineered heater designed for consistent everyday sauna use.

Premium Features at a Glance

📐 Space-Saving Design

A tall, narrow profile makes Revive Slim an excellent choice when sauna floor space is limited.

🪨 100-Lb. Rock Capacity

A substantial rock load for a compact heater, giving you plenty of heated stones for your sauna ritual.

💨 Steam-Friendly Design

Add water to the heated rocks to create bursts of steam and customize your sauna atmosphere.

✨ 100% Stainless Steel

Premium stainless-steel construction provides durability and a sleek modern appearance.

🇨🇦 Homecraft Quality

Backed by more than 35 years of Homecraft sauna-heater manufacturing experience.

🛡️ ETL Certified

Designed and certified to applicable CSA and UL standards.

🎛️ Digital Control Included

The Revive Slim package includes the Homecraft TKE2-2 Digital Sauna Control.

Why Choose Homecraft?

Over 35 Years of Sauna Expertise

Homecraft has been manufacturing sauna heaters for more than 35 years, with a focus on creating products that help bring authentic sauna culture into homes and wellness spaces across North America.

When you choose Homecraft, you're choosing a company with decades of experience dedicated to sauna products.

Canadian-made craftsmanship. North American expertise. Built for sauna enthusiasts.

Revive Slim vs. Standard Revive

Not sure which one is right for your sauna?

Choose Revive Slim when maximizing floor space is your priority.

Choose Revive when you have more room and want the larger 200-lb. rock capacity.

Revive Slim 6kW — Specifications

Heater Model: Revive Slim
Power: 6kW / 6,000W
Dimensions: 13.5" W × 8" D × 36" H
Rock Capacity: Up to 100 lbs.
Construction: 100% Stainless Steel
Control: Homecraft TKE2-2 Digital Sauna Control
Certification: ETL Certified / CSA & UL compliant
Recommended Application: Smaller residential sauna environments

Revive 7.5 Kw SPECS:

Homecraft Revive 7.5kw
Product ID: RV75
Components
Product ID Qnty
TKE2-2 (1 Phase) Control with Weatherproof Box TKE2-2 1
Revive Trim Kit (1x3x7' Trim to cover low voltage wire) 008134 3
Homecraft Sauna Rocks RCK04 7
Specifications
Output (kW) 7500 w
Sauna Room Size 8.5-10.5 m3 300-370 c/ft
Voltage/Phase 240v 1PH
Amperage/Breaker Size 31.3 amps 40 amp
Wire Size 8 AWG
Stone amount (7-10 cm) (3-4”) 91 (kg) 200 (lbs)
Product Width 355 (mm) 14”
Product Depth 355 (mm) 14”
Product height 914 (mm) 36”
Netweight 19 (kg) 42 (lbs)
Weight with stones 110 (kg) 242 (lbs)
Safety distance front (non-combustible materials) 89 (mm) 3 ½”
Safety distance side(non-combustible materials) 89 (mm) 3 ½”
Room min. height 1981 (mm) 78”

Revive 9 Kw SPECS:

Homecraft Revive 9kw
Product ID: RV75
Components
Product ID Qnty
TKE2-2 (1 Phase) Control with Weatherproof Box TKE2-2 1
Revive Trim Kit (1x3x7' Trim to cover low voltage wire) 008134 3
Homecraft Sauna Rocks RCK04 7
Specifications
Output (kW) 9000 w
Sauna Room Size 10.2-12.7 m3 360-450 c/ft
Voltage/Phase 240v 1PH
Amperage/Breaker Size 37.5 amps 50 amp
Wire Size 8 AWG
Stone amount (7-10 cm) (3-4”) 91 (kg) 200 (lbs)
Product Width 355 (mm) 14”
Product Depth 355 (mm) 14”
Product height 914 (mm) 36”
Netweight 19 (kg) 42 (lbs)
Weight with stones 110 (kg) 242 (lbs)
Safetydistancefront (non-combustiblematerials) 89 (mm) 3 ½”
Safety distance side(non-combustible materials) 89 (mm) 3 ½”
Room min. height 1981 (mm) 78”

Important: Sauna heater sizing, electrical requirements, clearances, and installation must be verified for your specific sauna room and local electrical code. Professional installation is recommended.

Bring More Sauna Into Less Space

You don't need a massive sauna room to create an impressive sauna experience.

The Revive Slim Sauna Heater gives you the performance-focused design of the Revive collection in a streamlined package built for compact spaces.

With 100 lbs. of rock capacity, 100% stainless-steel construction, digital controls, and a space-saving tower design, Revive Slim is an ideal choice for homeowners who want to maximize their sauna without sacrificing the features that make the sauna experience special.

Make Your Sauna Space Work Harder.

Choose the Revive Slim and enjoy premium sauna performance in a remarkably compact footprint.

🛒 Add Revive Slim to Your Sauna Today

Compact design. Premium construction. Serious sauna experience.
